CORE case study · Purley, London

Tree root protection and gravel parking at Foxley Lane

1,260 m² of CORE TRP and 1,010 m² of CORE DRIVE support tree-sensitive access and gravel parking for a 41-home development at Foxley Lane.

Client
CR8 Three Ltd
Sector
Residential development
Location
Purley, London
CORE components
CORE TRP · CORE DRIVE
New homes, retained trees and parking at Foxley Lane in Purley.
CORE project · Purley, London
011,260 m²

CORE TRP supplied

02940 m²

CORE DRIVE 50-35 HD

0370 m²

CORE DRIVE 40-30

0441 homes

Affordable residential development

Project context

A landscape shaped by its purpose.

At Foxley Lane in Purley, 41 affordable homes sit among retained mature trees. Vision Construct delivered the development for CR8 Three Ltd, working with OB Architecture. Access and parking had to fit the established landscape.

The brief

What the project had to achieve.

Provide stable access and parking in a tree-rich setting, with a root-sensitive supporting layer and a permeable gravel finish suited to everyday residential use.

  1. 01

    Retained trees

    Fit access and parking around the established landscape.

  2. 02

    Supporting layer

    Use a root-sensitive supporting layer to help distribute surface loads.

  3. 03

    Gravel finish

    Provide a permeable gravel finish suited to everyday residential use.

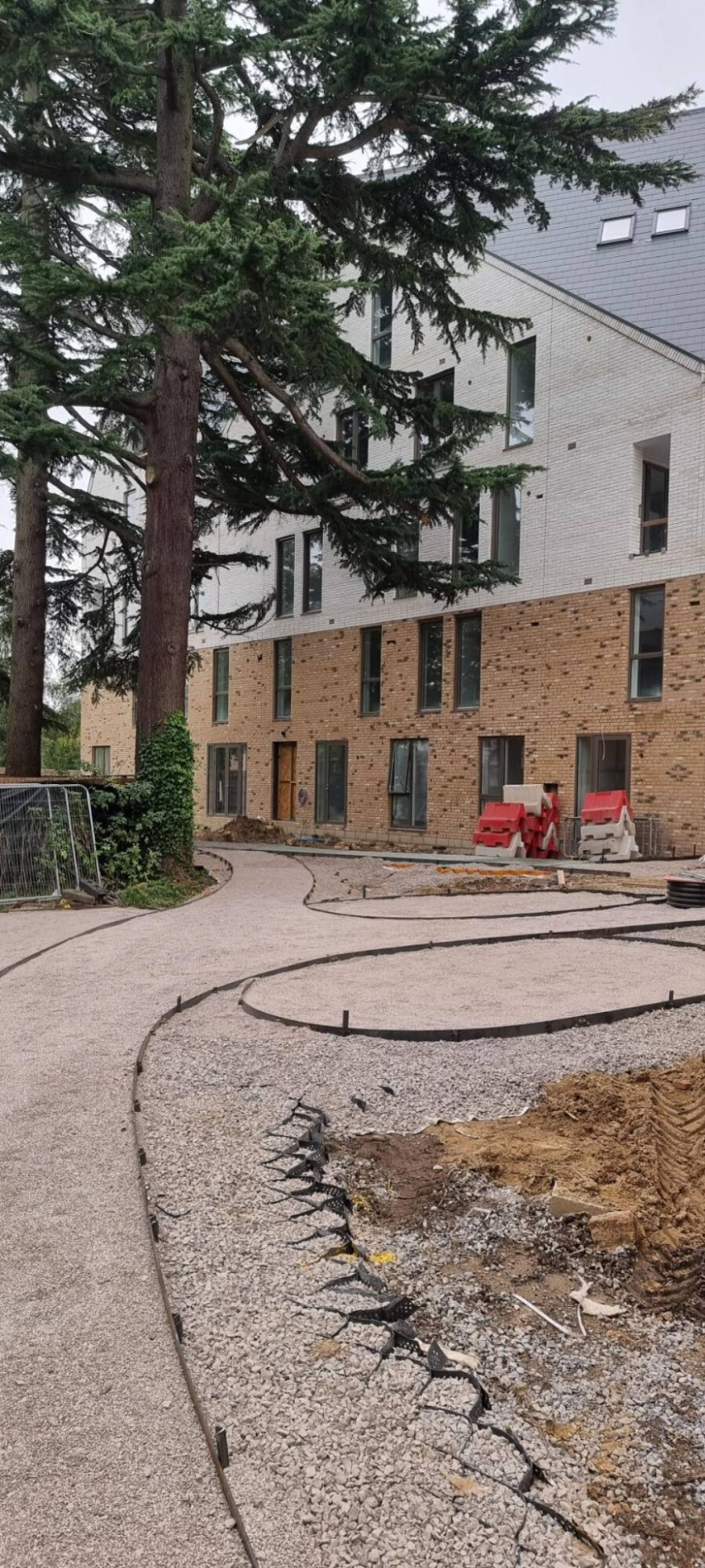

CORE TRP cells beside a retained tree during construction at Foxley Lane.
CORE TRP cells beside a retained tree during construction at Foxley Lane · Construction photograph: CORE
The CORE solution

Selected around the site—not just the surface.

CORE TRP provides cellular support within the pavement build-up, while CORE DRIVE grids contain the gravel at the surface.

CORE supplied 1,260m² of CORE TRP for cellular support within the pavement build-up, together with 940m² of CORE DRIVE 50-35 HD and 70m² of CORE DRIVE 40-30. The TRP layer helps spread loads over rooting areas; the surface grids contain gravel under everyday use.

Membranes, geogrid and fixings completed the supply. Construction photography shows the cellular layer beside a retained tree before the landscape was finished.

Products & quantities

Products used.

The result

Tree-sensitive support and gravel restraint combined within the residential access and parking construction.

Project outcomes

  • Cellular support incorporated beside retained mature trees
  • Two CORE DRIVE grid types supplied for gravel access and parking
  • Membranes, geogrid and fixings included within the project supply
Project team

The people behind the project.

Client
CR8 Three Ltd
Contractor
Vision Construct
Architect
OB Architecture
Project gallery

Progress and completed work.

New homes, retained trees and parking at Foxley Lane in Purley.
New homes, retained trees and parking at Foxley Lane in PurleyPhotography: OB Architecture / Oleh Rosypkocompleted

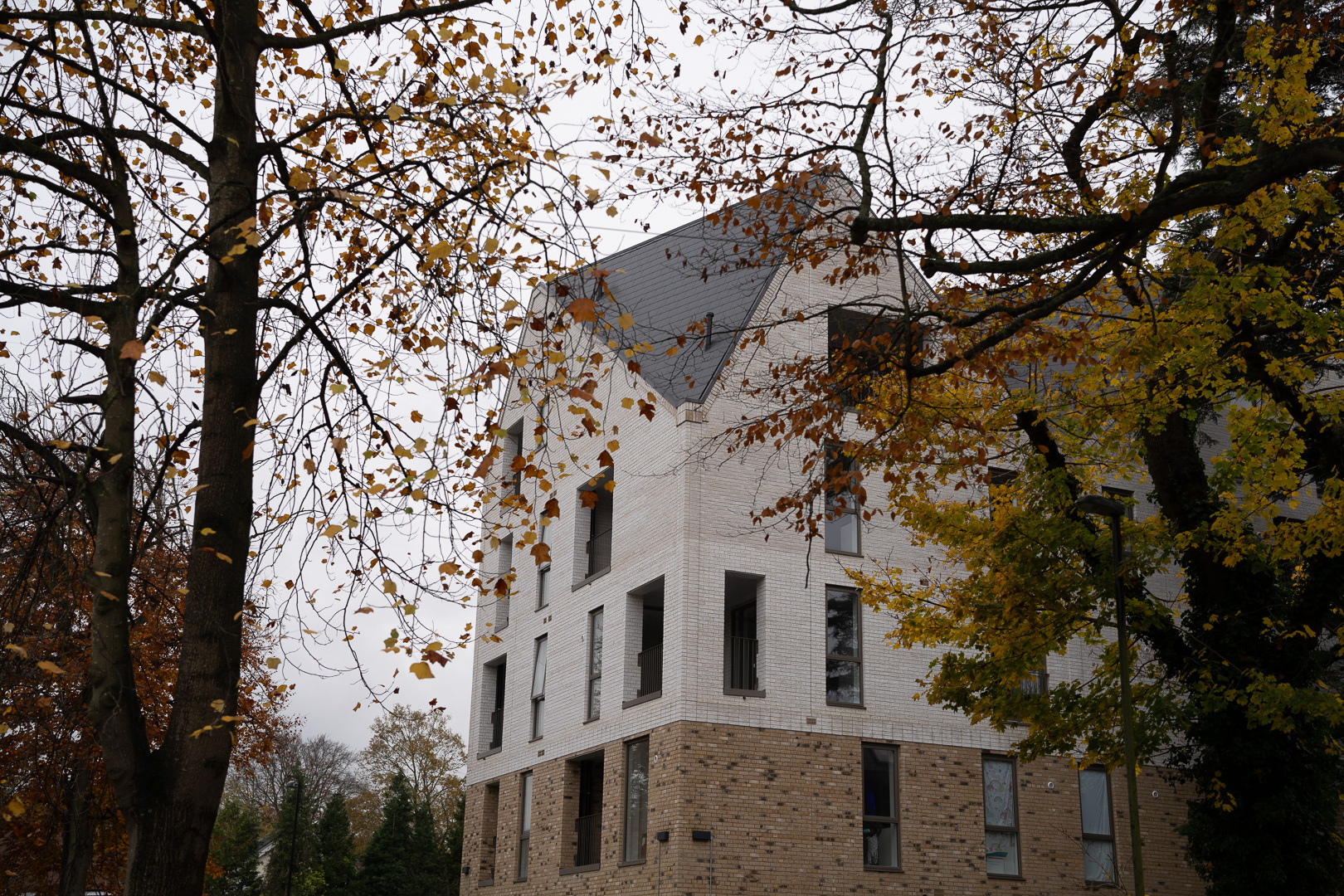

Foxley Lane apartments seen through the established trees.
Foxley Lane apartments seen through the established treesPhotography: OB Architecture / Oleh Rosypkocompleted
Residential buildings and access areas at Foxley Lane.
Residential buildings and access areas at Foxley LanePhotography: OB Architecture / Oleh Rosypkocompleted
CORE TRP cells beside a retained tree during construction at Foxley Lane.
CORE TRP cells beside a retained tree during construction at Foxley LaneConstruction photograph: COREprogress
